How to wire an AC rocker switch

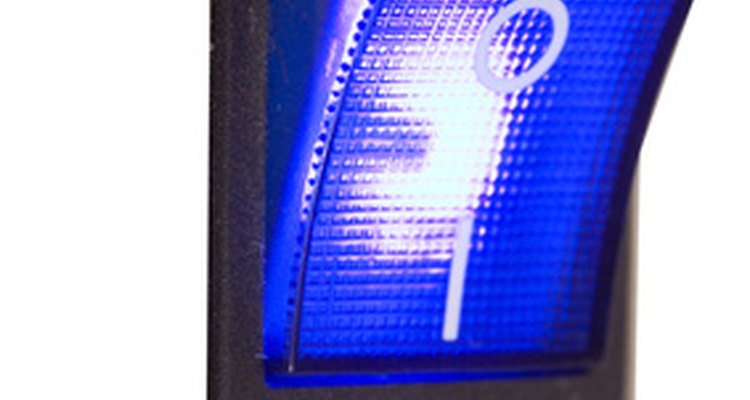

toggle switch image by Sergey Danilov from Fotolia.com
A rocker switch is often a traditional on/off switch for a light or appliance, but some divert electric power between two or more appliances. AC rocker switches are used on electric motors, entertainment electronics and as household light and appliance switches.
Single-pole double-throw rockers, as outlined, have an "on" position for two different electrical components at both sides with the "off" position between them in the middle. Wiring rocker switches is a matter of connecting them to the electrical supply and the components.
Shut off the power to a device and unplug it, or turn off the breaker switch, or switches to the electrical circuits that the lights, or appliances use. Put a note or a lock on the door to the breaker panel to keep anyone from restoring the power.
- A rocker switch is often a traditional on/off switch for a light or appliance, but some divert electric power between two or more appliances.
- Shut off the power to a device and unplug it, or turn off the breaker switch, or switches to the electrical circuits that the lights, or appliances use.
Look at the type of terminals your AC rocker switches use to connect wires. Wiring rocker switches involves turning screw terminals, or soldering. The switches will have screw heads, or flat metal lugs with small holes for soldering the wires in place. Loosen screw terminals with a screwdriver, or plug in a soldering iron to heat for wiring rocker switches with soldering lugs.
Connect the hot wire carrying the electric power supply to the input, or common terminal on the rocker switch. The common terminal is typically in the middle of the three terminals, and will be labelled. Wrap the wire around the screw terminal clockwise and tighten the screw, or hold it against the soldering lug and melt a bead of solder over it with the hot soldering iron. Make a bead that's big enough to cover all of the bare wire.
- Connect the hot wire carrying the electric power supply to the input, or common terminal on the rocker switch.
Connect a hot wire from an appliance to one of the outside terminals with solder or a screw terminal. The "on" position for that appliance is with the rocker button flat down on that side of the switch.
Connect the hot wire from another appliance to the other screw terminal or soldering lug. Use the switch to turn on one or the other of these appliances. Turn off both electrical components by leaving the rocker switch stopped in the middle position.
- Do not wire switches, or any electrical components unless you have training and experience with electrical systems.
