How to Replace a Toyota Previa Alternator

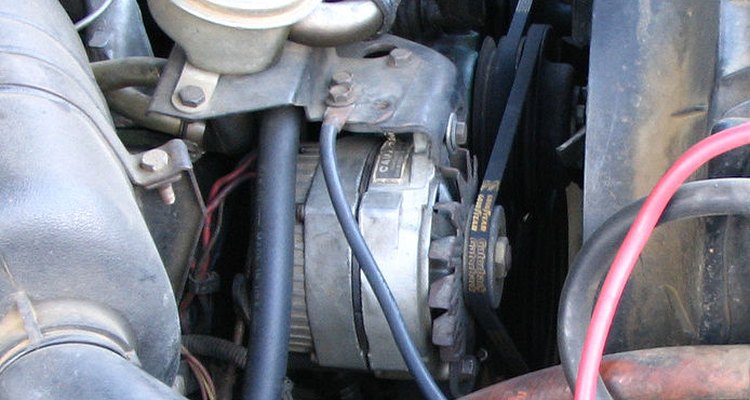

Alternator driven by a drivebelt and pulley. (Photo courtesy of Phasmatisnox at Wikipedia.org.)

The alternator on your Toyota Previa only has three mounting bolts, a connector and 2 wires you need to remove or disconnect the replace it. However, if you have the 2TZ-FE engine, you will have to do some of the work from underneath the vehicle; if you have the 2TZ-FZE engine, you need to remove the air duct and coolant reservoir for better access to the alternator. Whichever your model, you can install a new alternator.

Skill level:
Moderately Easy

Other People Are Reading

Things you need

  • Wrench set
  • Ratchet and socket
  • Ratchet extension

Show MoreHide

Instructions

    2TZ-FE Engine

  1. 1

    Park your car in a safe place, raise the front of the vehicle using a floor jack and safely support it on 2 jack stands. Remove the engine cover from underneath the vehicle using a ratchet and socket.

  2. 2

    Open the bonnet, disconnect the wire from the alternator adjusting bar, and unplug the alternator electrical connector.

  3. 3

    Remove the wire from the alternator using a ratchet, ratchet extension and socket to reach and remove the wire nut.

  4. 4

    Loosen the alternator lock bolt, adjusting bolt and pivot bolt-loosen the pivot bolt from underneath the vehicle. Use a wrench or ratchet and socket; then remove the drive belt off the alternator pulley.

  5. 5

    Remove the lock and adjusting bolts; then remove the pivot bolt from underneath the vehicle and pull the alternator off the vehicle from underneath the engine compartment.

  6. 6

    Set the new alternator in place, working from underneath the vehicle, and install the pivot bolt; then install the adjusting and lock bolts. Install the drive belt over the alternator pulley and adjust and tighten the adjusting bolt; then tighten the lock and pivot bolts.

  7. 7

    Plug the alternator electrical connector and wire; then install the adjusting bar wire and engine undercover.

    2TZ-FZE Engine

  1. 1

    Remove the air duct and the mounting bolts form the engine coolant reservoir; then move the reservoir to the side.

  2. 2

    Disconnect the black, negative battery cable, then disconnect the positive battery cable and remove the battery.

  3. 3

    Loosen the idler pulley nut from the centre of the pulley-the idler pulley is located next to the alternator; then loosen the pulley adjusting bolt located behind the idler pulley. Lift the drive belt off the alternator pulley.

  4. 4

    Unplug the alternator electrical connector and the wires from the alternator and alternator upper bracket.

  5. 5

    Remove the three alternator mounting bolts using a wrench and ratchet and socket; then lift the alternator off the engine compartment.

  6. 6

    Set the new alternator in place and tighten the three mounting bolts; plug the alternator electrical connector and connect the alternator and bracket wires.

  7. 7

    Install the drive belt over the alternator pulley and adjust the belt by tightening the idler puller adjusting bolt; then tighten the pulley centre nut.

  8. 8

    Install the battery, coolant reservoir and air duct.
