How to Make a Bench Vise

Written by john gugie
  • Share
  • Tweet
  • Share
  • Pin
  • Email
How to Make a Bench Vise
Bench vice (John Gugie)

A vice is a tool used for holding or clamping items together to bond or work on with other tools. Vices usually have one fixed jaw and a parallel jaw, which is moved towards or away from the other jaw by the use of a screw. A bench vice is simply a vice that clamps to a table or work bench for a more stable surface and can be operated by one hand. These are usually made of metal and are very heavy and costly. The following is a guide to making a rudimentary bench vice with a few wooden boards and small vices.

Skill level:
Moderately Easy

Other People Are Reading

Things you need

  • Board (metal or wood)
  • Wooden board
  • 2 metal brackets
  • 4 screws
  • Wood glue
  • 4 small metal vices

Show MoreHide

Instructions

  1. 1

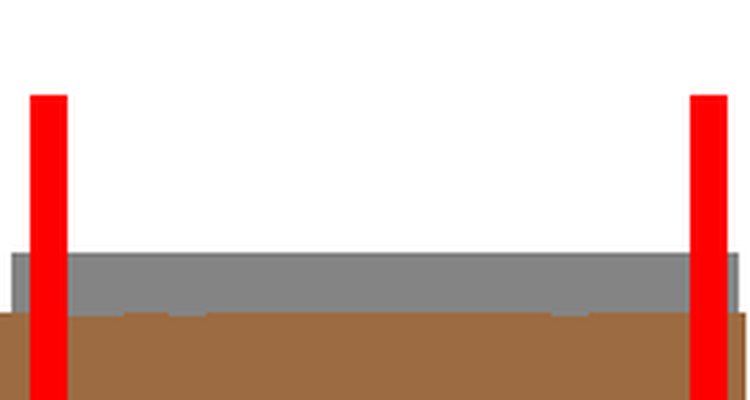

    Prepare the bench vice surface. This board protects the surface of the table or bench and provides a smooth work area for the objects to be clamped together. Find a wide board with which to use as the vice surface; it should be approximately 12 by 18 inches, flat, smooth and made of any hard material such as wood or metal. Place this board on the edge of the table or bench, so that the 18-inch side faces the edge and about 2 to 3 inches of the board hang over the edge of the table or bench. Clamp this to the table or bench with one vice on an inch or two in from each edge of the board. Be sure that the board is firmly clamped to the table or edge. (See diagram for details. Brown represents the table, grey represents the surface board and red represents the table vices.)

    How to Make a Bench Vise
  2. 2

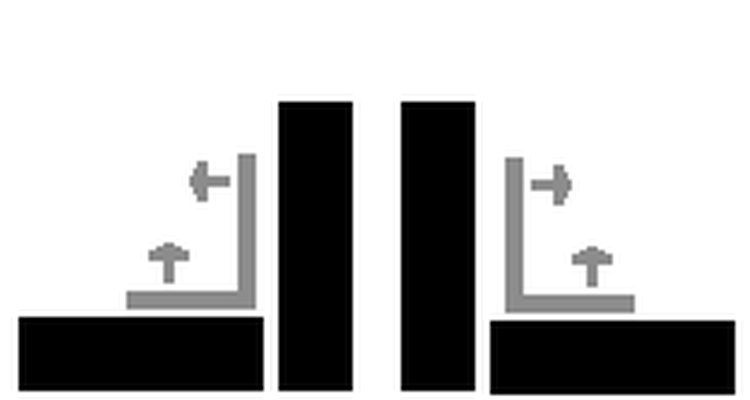

    Create the jaws of the vice. Cut a smooth, flat, 24-inch length of 2-by-4 hard wood into four 6-inch-long pieces. Stand one 6-inch length vertically on it edge and lay another horizontally so that they are adjacent to each other, like an L-shape. Glue the edge of the horizontal piece to the bottom side of the vertical piece and press firmly until the bond. Place an L-shaped metal bracket on the inside intersection of the two boards and join them to the two pieces with screws. Repeat this process with the other two pieces. (See diagram for details. Black represents the wood pieces and grey represents the brackets and screws.)

    How to Make a Bench Vise
  3. 3

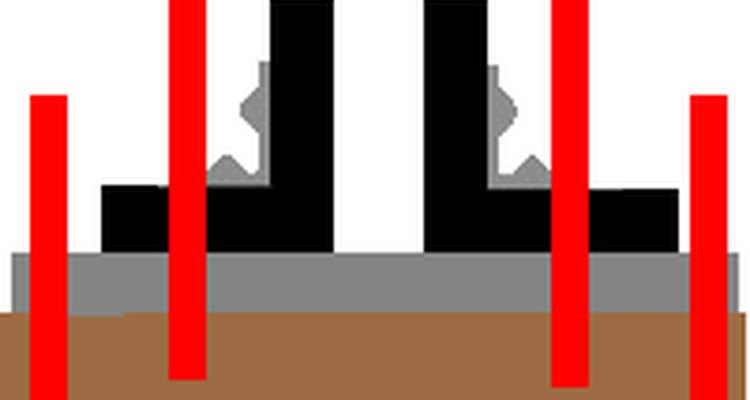

    Finish the bench vice. Place each of the jaws from Step 2 onto the surface from Step 1, so that each is on the edge of the surface board and the vertical ends are facing each other. Clamp each jaw to the surface board (not the table or bench) with a vertical vice on each horizontal part of the jaws. (See diagram for details.)

    How to Make a Bench Vise
  4. 4

    Use the bench vice. Loosen and remove the vice from one of the jaws, move the jaw to one edge of the surface board, and clamp it down firmly again with the vice. Loosen the vice on one of the jaw and move the jaw to the opposite edge of the surface board. Place the object(s) to be clamped between the jaws and up against the stationary jaw. Slide the loose jaw firmly against the opposite side of the object(s) and clamp it down firmly with the vice.

Tips and warnings

  • For delicate items to clamp, rubber or felt pads can be added to the inside of the vice jaws.
  • One of the vice jaws may be screwed down to the surface board to make it permanently stationary.
